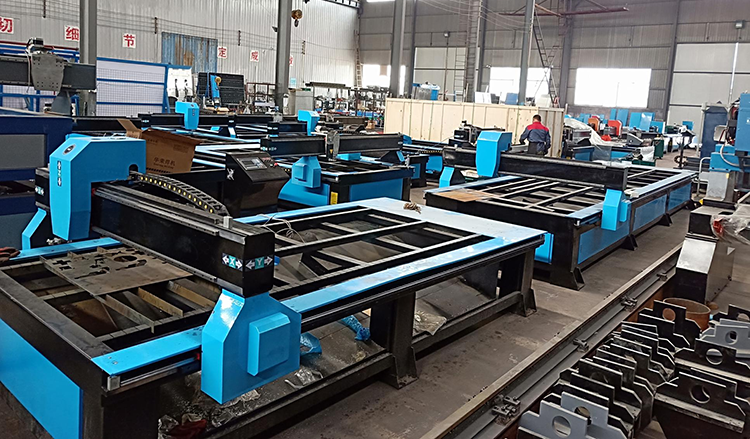

Plate plasma cutting machine: the secret to a threefold increase in cutting efficiency

In modern manufacturing, plate plasma cutting machine have become indispensable equipment in many industries due to their efficient and precise cutting capabilities. From shipbuilding to the automotive industry, from steel structure processing to machinery manufacturing, the application range of plate plasma cutting machine is extremely wide. And cutting efficiency has always been a key concern for users. When the cutting efficiency of plate plasma cutting machine can soar threefold, it will undoubtedly bring huge competitive advantages to enterprises. So, what secrets are hidden behind this? This article will delve into the mystery behind the threefold increase in cutting efficiency of plate plasma cutting machine.

1、 The assistance of advanced power technology

（1） Application of High Frequency Arc Starting Technology
The traditional plasma cutting machine arc starting method often has the disadvantages of difficult arc starting and long arc starting time, which not only affects the starting speed of cutting, but also may lead to unstable cutting quality. The advanced plate plasma cutting machine adopts high-frequency arc starting technology, which can ionize the gas in a very short time through the action of high-frequency electric field, achieving fast and stable arc starting. For example, when cutting carbon steel sheets with a thickness of 10mm, plasma cutting machines using high-frequency arc starting technology can complete arc starting within 0.5 seconds, which is nearly 80% shorter than traditional arc starting methods. Rapid arc initiation enables the cutting process to start quickly, reducing waiting time and directly improving overall cutting efficiency.
（2） Intelligent power regulation system

The intelligent power regulation system is another key factor in improving the cutting efficiency of plate plasma cutting machine. The system can automatically adjust the output power, current, and voltage parameters of the power supply according to different cutting materials, thicknesses, and cutting speeds. Taking cutting stainless steel plates as an example, when the cutting thickness increases from 5mm to 15mm, the intelligent power regulation system will automatically increase the output power and current to ensure that there is enough energy to melt the metal during the cutting process, while maintaining stable cutting speed. On the contrary, when cutting thinner materials, the system will reduce power output to avoid excessive cutting and energy waste. This precise power regulation ensures that the cutting process is always in optimal condition, greatly improving cutting efficiency. According to actual testing, the plate plasma cutting machine using an intelligent power regulation system has improved cutting efficiency by an average of over 30% under different materials and thicknesses.

2、 Breakthrough in Innovative Cutting Nozzle Design

（1） Optimize nozzle structure
The cutting nozzle is one of the core components of the plate plasma cutting machine, and its structure directly affects the shape, stability, and energy density of the plasma arc. Traditional nozzle designs often suffer from problems such as plasma arc diffusion and energy concentration, resulting in slow cutting speed and poor cutting quality. The new cutting nozzle adopts an optimized structural design, which reduces the nozzle outlet diameter and increases the nozzle length to make the plasma arc more concentrated and stable. For example, a new type of nozzle has reduced the outlet diameter from the original 2.0mm to 1.5mm, while increasing the nozzle length, resulting in a 40% increase in the energy density of the plasma arc. When cutting 20mm thick carbon steel plates, the optimized nozzle was used to increase the cutting speed from 300mm/min to 500mm/min, significantly improving the cutting efficiency.
（2） Adopting composite material nozzle

In addition to optimizing the structure, using composite materials to make cutting nozzles is also an important means to improve cutting efficiency. The traditional nozzle material is usually copper. Although copper has good electrical and thermal conductivity, it is prone to wear and deformation under the impact of high temperature and high-speed plasma arc, which affects the service life and cutting quality of the nozzle. Composite material nozzles, such as copper tungsten alloy nozzles, combine the high conductivity of copper with the high hardness and melting point of tungsten, and can maintain stable performance in high temperature and high-speed environments. Compared with copper nozzles, the service life of copper tungsten alloy nozzles is extended by more than three times, while reducing the problems of decreased cutting quality and cutting speed caused by nozzle wear, indirectly improving cutting efficiency.

3、 Guarantee of Efficient Gas Supply System

（1） Accurate gas flow control
During the plasma cutting process of sheet metal, gas plays an important role in cooling the nozzle, protecting the plasma arc, and blowing away molten metal. Accurate gas flow control is crucial for ensuring cutting quality and improving cutting efficiency. The advanced gas supply system adopts high-precision flow sensors and proportional valves, which can monitor and adjust the gas flow rate in real time. For example, when cutting aluminum alloy sheets, the system will accurately control the oxygen flow rate based on the cutting speed and sheet thickness, ensuring that there is enough gas to blow away the melted aluminum alloy during the cutting process, avoiding slag adhesion on the cutting surface and affecting the cutting quality. Meanwhile, precise gas flow control can also reduce gas waste and lower production costs. According to statistics, the plate plasma cutting machine using a precise gas flow control system has reduced gas consumption by more than 20% and improved cutting efficiency by about 15%.
（2） High quality gas supply

In addition to precise flow control, high-quality gas supply is also a key factor in improving cutting efficiency. If the gas contains impurities, moisture, etc., it will affect the stability and cutting quality of the plasma arc. Therefore, advanced plate plasma cutting machine are equipped with efficient gas purification devices that can remove impurities and moisture from the gas, ensuring high purity of the supplied gas. Using a plasma cutting machine supplied with high-quality gas, the plasma arc is more stable, the cutting speed is faster, and the cutting surface quality is better during the cutting process. For example, when cutting high-precision components, using a cutting machine supplied with high-quality gas can control the cutting error within ± 0.1mm, while using a cutting machine supplied with ordinary gas may result in a cutting error of ± 0.3mm or more.

4、 Upgrade of Intelligent Control System

（1） Automatic path planning function
The automatic path planning function in intelligent control systems is an important innovation to improve the cutting efficiency of plate plasma cutting machine. The traditional cutting method requires manual path planning, which is not only inefficient but also prone to problems such as unreasonable paths and repeated cutting. The automatic path planning function can automatically generate the optimal cutting path based on the shape, size, and cutting requirements of the board. For example, when cutting complex shaped sheets, the system automatically calculates the cutting sequence and path, avoiding unnecessary empty strokes and repeated cutting, greatly reducing cutting time. According to actual testing, the plate plasma cutting machine using automatic path planning function has reduced the time for cutting complex shaped sheets by more than 40% compared to traditional methods.
（2） Real time monitoring and fault diagnosis
The intelligent control system also has real-time monitoring and fault diagnosis functions, which can monitor the operating status of the cutting machine in real time, including power parameters, gas flow rate, cutting speed, etc. Once an abnormal situation is detected, the system will immediately issue an alarm and provide detailed fault diagnosis information. For example, when plasma arc instability occurs during the cutting process, the system will quickly determine whether it is a power problem, gas problem, or nozzle problem, and provide corresponding solutions. This real-time monitoring and fault diagnosis function can timely detect and solve problems that occur during the cutting process, avoiding downtime caused by faults, thereby improving cutting efficiency and equipment reliability.
The threefold increase in cutting efficiency of plate plasma cutting machine is not accidental, but the result of multiple factors such as advanced power technology, innovative cutting nozzle design, efficient gas supply system, and intelligent control system upgrades. These advanced technologies and designs have significantly improved the cutting speed, cutting quality, and stability of sheet metal plasma cutting machines. For enterprises, choosing a plate plasma cutting machine with these advanced features can not only improve production efficiency and reduce production costs, but also gain a competitive advantage in the fierce market competition. With the continuous advancement of technology, it is believed that the cutting efficiency of plate plasma cutting machine will be further improved, bringing greater impetus to the development of the manufacturing industry.
