What is a punching machine used for?

In the modern manufacturing industry, punching machines, as a class of efficient and accurate metal processing equipment, have long been an indispensable and important equipment on the industrial production line. Whether it is automobile manufacturing, home appliance production, or other industries, punch presses are silently supporting its development. So, what exactly is a punch press used for? What are its principles and applications?

1.What is a punching machine

Punching machine is a kind of machine tool that uses mechanical force or hydraulic power to drive the mold for punching, bending, stretching and other processing of plate, strip and other materials. Its core principle is to drive the upper die to press down quickly through the slider, and cooperate with the lower die to complete the plastic deformation or separation of the material. According to the power source and structural characteristics, punching machine is mainly divided into the following categories:

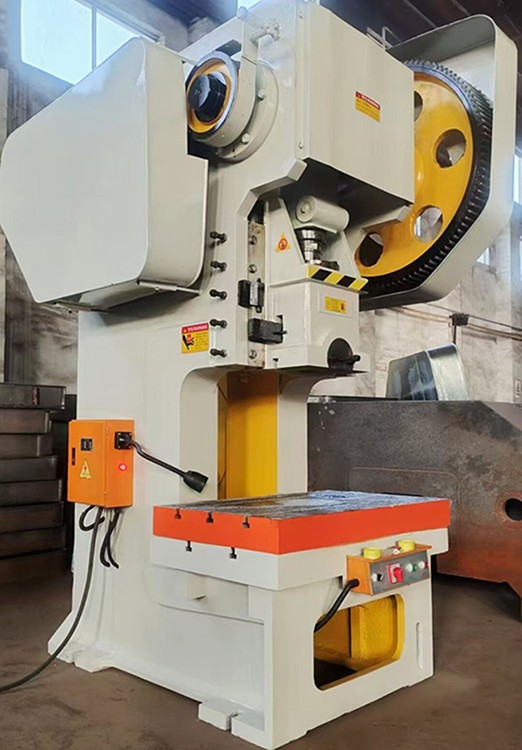

(1) Mechanical press: power is transmitted through flywheel and crank linkage mechanism, the speed can be up to 200-1500 times/minute (data source:“China Stamping Technology Manual”), suitable for mass production.

(2) Hydraulic press: driven by hydraulic system, with stable and adjustable pressure (typical pressure range 10-3000 tons), suitable for thick plates or precision molding.

(3) Servo punch press: directly controlled by servo motor, low energy consumption, high precision (repeat positioning accuracy±0.01mm), mostly used for high value-added products.

2. Common Uses of Punching Machines

(1) Cutting

Punching machines can be used for cutting, especially in some demanding metal materials cutting. Since the punch press works in a similar way to a stamping press, it can realize a high shearing force in a small area, thus realizing cutting by means of shearing.

(2) Forming

Punching machines can form metal materials while processing them. Unlike cutting, forming is done by applying processes such as bending, stretching, or other pressures to the metal material to give it the desired shape and size. Punching machines can achieve forming results in various shapes and sizes by matching different dies.

(3) Punching

A punch press can be used for punching holes, and it works in a similar way to a drill press. The required hole size and shape can be set on the punch, and the workpiece is placed on the punch to be processed in order to achieve the desired punching effect.

(4) Other Uses

Punching machine can also be applied to knife, shear, shear plate and other molds with processing, applicable to electronics, electrical appliances, automobiles, motorcycles, home appliances, light industry, kitchenware, handicrafts and other industrial fields, is an important tool indispensable to modern manufacturing enterprises.

3. Application fields of punching machine

(1) Automobile manufacturing

- Body covering parts (such as doors, hoods) of the press molding, a 2000-ton hydraulic press can produce 300,000 pieces per year (Source: International Automotive Engineering Association 2023 report).

- Precision blanking of safety structure parts (crash beams, chassis parts), with error control within ±0.1mm.

(2) Electronic and electrical appliances

- Micro-stamping of metal center frames and heat sinks for cell phones, servo presses can process ultra-thin materials 0.1mm thick.

- Appliance shell mass production, such as air conditioning panel punching efficiency of 500 pieces / hour.

(3) Aerospace

- Hot stamping of titanium alloy aerospace parts, which requires a high temperature environment of more than 400 ℃ to match (reference: Boeing's process standards).

- Lightweight press molding of satellite solar panel bracket.

(4) Emerging fields

- High-speed stamping of new energy battery shells, Tesla 4680 battery shell production using 1200 times/minute mechanical press.

- Micro-precision stamping of medical devices (e.g., surgical forceps) with accuracy requirements of ±0.005mm.

4.Technology Trends and Industry Challenges

With the advancement of Industry 4.0, punching machines are developing towards intelligence and greening:

- Intelligent: AI vision inspection system can adjust stamping parameters in real time, and the scrap rate is reduced to less than 0.5% (Case: Germany's Trafigura Group 2024 technology white paper).

- Environmental protection requirements: new EU regulations require press noise to be below 75 dB, promoting the development of quiet hydraulic technology.

With the continuous progress of industrial technology, punching machine is not only a single mechanical equipment, but also gradually develops in the direction of intelligence and automation. Modern punching machines are generally equipped with CNC systems, which can realize automatic processing of complex processes according to preset programs, not only improving efficiency, but also greatly reducing human error.

In addition, driven by the concept of green manufacturing, punching machines are constantly optimizing energy consumption and noise control. The emergence of a new generation of servo punch presses marks the evolution of stamping equipment towards a more environmentally friendly and energy-saving direction, which provides a new impetus for the sustainable development of the manufacturing industry .
