What does CNC mean in laser cutting?

In the high-precision manufacturing field of laser cutting, CNC (Computer Numerical Control) technology, as the core control system, is precisely driving the laser head movement through digital instructions to achieve millimeter level cutting of metal and non-metal materials. The introduction of CNC has moved laser cutting from manual operation to intelligent production, from complex aerospace components to precision consumer electronics parts. This article will deeply analyze the technical principles, functional advantages, and industry applications of CNC in laser cutting.

News Text (Simplified Core Content)

1. Technical definition and core functions of CNC

1. Definition
The CNC system generates machining path codes (such as G-code) through programming software, converts design drawings into coordinate motion instructions for laser heads and workbenches, and achieves automated cutting.
Example: Cutting a circular hole with a diameter of 100mm, the CNC system can accurately control the laser head to move along the circular trajectory with an error of less than 0.05mm.
2. Core functions
Path planning: Automatically calculate the optimal cutting sequence to reduce idle travel time (increase efficiency by more than 30%);
Speed control: dynamically adjust laser power and cutting speed according to material thickness (e.g. 1mm steel plate: power 1500W, speed 10m/min);

Compensation correction: Real time correction of thermal deformation errors to ensure aperture and margin accuracy (tolerance ± 0.02mm).

2. The key role of CNC in laser cutting

1. Improve machining accuracy
Case: A certain automotive parts manufacturer uses CNC laser cutting machines to produce engine brackets, with a hole position repeatability accuracy of 0.01mm, far exceeding traditional stamping processes;
Data: Under CNC control, the perpendicularity error of the cutting edge has been reduced from 1 ° to 0.2 °, reducing the subsequent polishing process.
2. Implement complex graphic processing
Function: Support direct import of CAD drawings, automatically generate 3D paths such as oblique cuts and bevels;
Application: The medical device industry utilizes CNC cutting of stainless steel vascular stents, forming micro scale structures in one go.
3. Optimize production efficiency
Automated nesting: using nesting algorithm to improve material utilization (from 65% to 88%);

Unmanned operation: 24-hour continuous processing, with a single shift capacity four times higher than manual operation.

3. Technical classification of CNC laser cutting machines

1. Two dimensional plane cutting
Applicable materials: flat materials such as carbon steel, stainless steel, acrylic, etc;

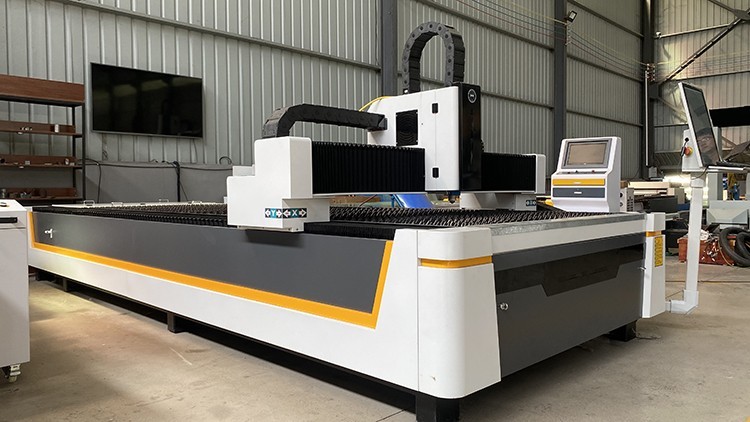

Typical equipment: Fiber laser cutting machine (power 1kW-30kW), cutting speed up to 100m/min.
2. Three dimensional cutting
Technical features: Equipped with a five axis linkage system to achieve spatial surface cutting;
Application scenarios: Processing of irregular parts such as automotive A-pillars and ship curved panels.
3. Specialized cutting for pipes
Functional innovation: Integrated chuck automatic rotation and CNC synchronous control, cutting square and circular tube sections;
Efficiency comparison: The cutting cycle of pipes has been shortened from 15 minutes per piece to 2 minutes per piece.
CNC technology has become the core engine for upgrading laser cutting from a "tool" to an "intelligent terminal". Through digital closed-loop control, it not only breaks through the bottleneck of precision and complexity in traditional cutting, but also promotes the transformation of manufacturing industry towards "design programming processing" integration. In the future, with the deep integration of AI algorithms and CNC, laser cutting equipment will have adaptive process optimization capabilities, further reducing dependence on operator skills and injecting new momentum into the global Industry 4.0 process.
