What is the technology of punching machine?

Punching machine is a common pressure processing equipment in industrial production, widely used in metal forming, punching, shearing and other processes. It is mechanically or hydraulically driven to make the slider make reciprocating linear motion along the guide rail, so as to exert pressure on the material placed between the molds to produce plastic deformation or separation. Punching machine is characterized by high working efficiency, easy operation and better processing accuracy, which is one of the indispensable basic equipments in modern manufacturing industry.

1. Basic Principles of Punching Machine Technology

The core principle of punching machine is based on energy conversion and transfer. The electric motor drives the flywheel to rotate and store kinetic energy through the belt and gear system. When the clutch is engaged, the energy of the flywheel is converted into a linear movement of the slide through the crankshaft or connecting rod mechanism. As the slider moves downward, it applies pressure to the material to form or separate it in the mold. Upon completion, the ram returns to the upper dead center by means of a reset spring or pneumatic device, ready for the next press. The entire process is coordinated by a control system that ensures accurate and safe movements.

This principle gives punching machines the distinctive features of “high speed, high accuracy and high efficiency”.

2. Main types and technical characteristics of punching machines

According to the driving method and structural design, punching machines are mainly divided into the following categories:

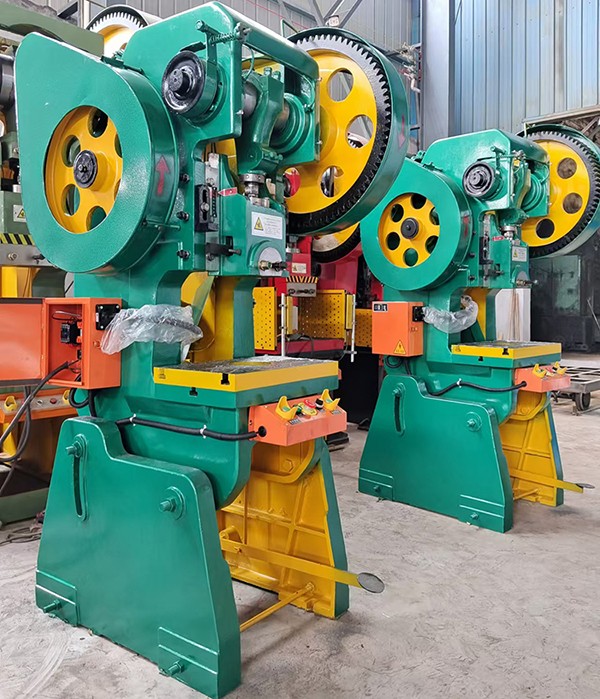

(1) Mechanical punching machines drive the flywheel through the motor, and then the crank or eccentric wheel drives the slider movement. Mechanical punch press is characterized by high speed and high efficiency, and is widely used in conventional processing such as punching and blanking.

(2) Hydraulic Punch Press

utilizes hydraulic system to provide pressure, characterized by large punching force, adjustable stroke and smooth movement. Hydraulic press is suitable for deep drawing and large tonnage stamping processing.

(3) Pneumatic press

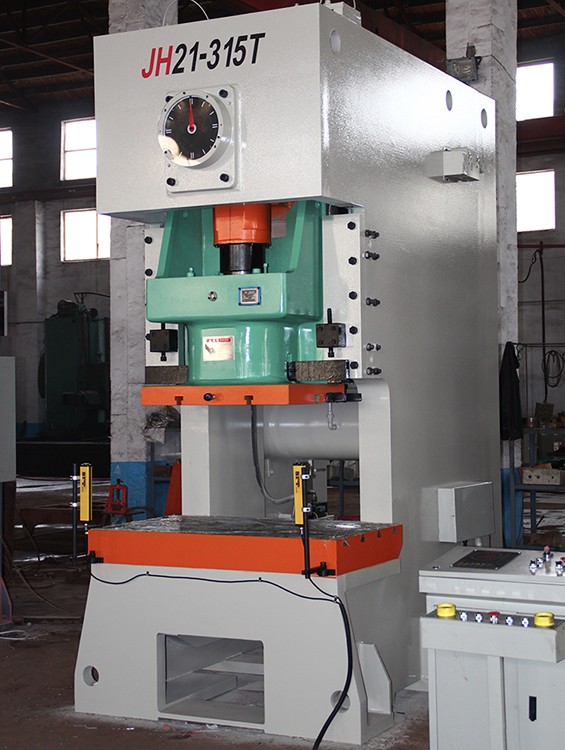

driven by compressed air, with low energy consumption, safe operation advantages, commonly used in small and medium-sized workpiece stamping.

(4) CNC Punching Machine

Combined with automation and CNC system, it can realize high-precision and multi-process compound processing, such as punching, cutting, forming, etc. It is suitable for flexible production and complex parts manufacturing.

Different types of punching machines correspond to different technical scenarios to meet the diversified needs from mass production to high-precision manufacturing.

3. Application fields of punching machine

As the core equipment of metal processing, punching machine has a wide range of applications:

Automobile industry: body covering parts, chassis structural parts, engine parts.

Home appliance manufacturing: refrigerator panels, washing machine shells, air conditioning frames.

Construction industry: door and window profiles, decorative panels, hardware.

Electronics industry: motor cores, terminals, heat sinks and other precision stamping parts.

Packaging industry: metal cans, bottle caps, food containers.

It can be said that the progress of punching machine technology, directly promote the efficiency of the manufacturing industry and product updates.

4.Operation and Safety Norms of Punching Machines

Operation of punching machines requires strict adherence to safety norms in order to prevent risks. Operators should be professionally trained and familiar with equipment performance and operating procedures. Protective equipment such as gloves and goggles should be worn while working to avoid debris injury. Equipment should be equipped with protective devices such as safety grids and two-hand operation buttons to prevent injuries caused by misuse. Regularly maintain and inspect key components such as clutches and brake systems to ensure reliable operation of the equipment. Keep the working area neat and clean to avoid debris interfering with operation. These measures can effectively improve the level of safety production.

5. Maintenance and upkeep of punch press

Regular maintenance is the key to guarantee the long-term stable operation of the punch press. Daily maintenance includes cleaning the machine body, lubricating the moving parts and checking the electrical system. Weekly or monthly need to mold, slide guide for detailed inspection, adjust the gap to prevent wear. Annual overhaul should be carried out to replace wearing parts such as bearings and seals, and calibrate the pressure accuracy. Maintenance records should be kept in detail to track the status of the equipment. Good maintenance not only extends equipment life, but also reduces downtime and improves productivity.

6. Development and Innovation Trends of Punching Machines

With the advancement of manufacturing technology, punching machines are developing in the direction of intelligence and greening. New punch presses integrate sensors and IoT technology to realize real-time monitoring and predictive maintenance to reduce unexpected failures. Energy-efficient designs such as variable frequency drive systems reduce energy consumption. Mold materials and innovative structural designs also improve processing accuracy and longevity. These innovations not only enhance productivity, but also support sustainable development and adapt to future industrial needs.

As an important cornerstone of modern manufacturing, the punch press has evolved from a traditional mechanical drive to a comprehensive system covering mechanical, hydraulic, pneumatic, CNC and intelligent. It not only meets the demand of mass production, but also conforms to the trend of high precision, automation and environmental protection and energy saving.
