CNC bending machine manufacturer

We are a professional CNC bending machine manufacturer with over 10 years of industry experience.Today,we would like to introduce to you:

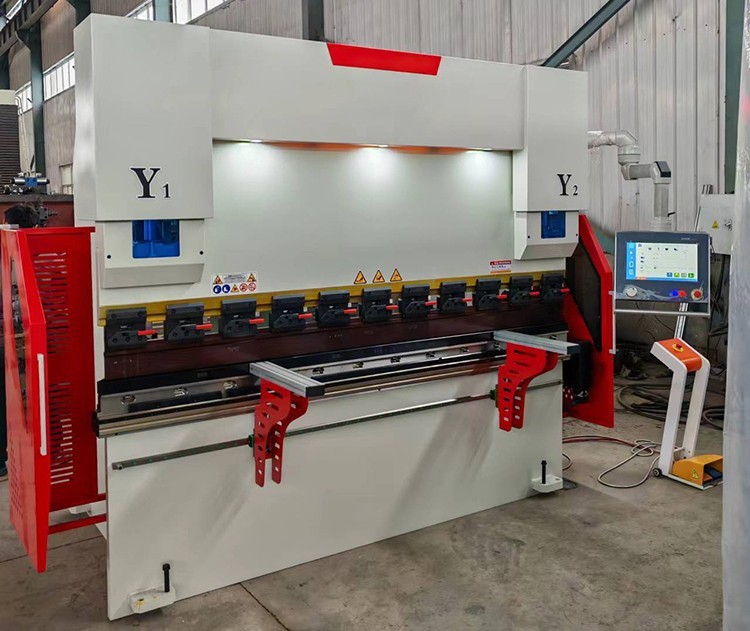

A CNC bending machine is a tool that uses a mold to bend metal sheets in a cold state into various geometric cross-sectional shapes of workpieces.It is a sheet metal forming machine designed for cold-rolled sheet metal processing,widely used in sheet metal bending processing in industries such as automobiles,aircraft manufacturing,light industry,shipbuilding,containers,elevators,railway vehicles,etc.The composition structure of a CNC bending machine mainly includes the following key parts:

1.Sliding block:The sliding block is one of the core components of a CNC bending machine,which is responsible for driving the upper mold to move up and down,thereby achieving the bending of metal sheets.Sliding blocks are usually made of high-strength and wear-resistant materials to ensure their long-term stable operation.

2.Workbench:A workbench is a platform for placing metal sheets,which supports the entire bending process.Workbenches typically have a large area and sufficient load-bearing capacity to accommodate metal sheets of different sizes and weights.Meanwhile,the surface of the workbench is usually treated with special techniques to enhance its wear resistance and corrosion resistance.
3.Synchronization system:The synchronization system is used to ensure the smooth operation and precise control of the slider during the working process.It usually consists of components such as sensors,controllers,and actuators,which can monitor the position and speed of the slider in real time and adjust its motion trajectory as needed.Through precise control of the synchronization system,precise bending of metal sheets can be achieved.
4.Material blocking mechanism:The material blocking mechanism is used to locate and block metal sheets to ensure their accuracy during the bending process.Material blocking mechanisms typically have adjustable blocking positions and pressures to accommodate metal sheets of different sizes and thicknesses.At the same time,the blocking mechanism also has good stability and durability to ensure its long-term stable operation.
5.Hydraulic system:The hydraulic system is one of the power sources of the CNC bending machine,responsible for providing sufficient driving force for the slider.Hydraulic systems typically consist of components such as oil tanks,oil pumps,motors,hydraulic valves,and pipelines,which can adjust the flow rate and pressure of hydraulic oil as needed.Through precise control of the hydraulic system,smooth movement and precise positioning of the slider can be achieved.
6.Electrical control system:The electrical control system is one of the core parts of the CNC bending machine,responsible for the operation control and monitoring of the entire equipment.Electrical control systems typically consist of components such as PLC(Programmable Logic Controller),touch screen,sensors,and actuators,which can monitor the operating status and parameters of equipment in real time and adjust its working mode as needed.Through precise control of the electrical control system,automated operation and precise control of the equipment can be achieved.
In summary,the composition structure of a CNC bending machine includes key components such as a slider,worktable,synchronization system,material blocking mechanism,hydraulic system,and electrical control system.These components work together to achieve precise bending and efficient processing of metal sheets.
Obtain detailed machine parameters and quotation.
