How does a pneumatic punch work?

Pneumatic press is a common stamping equipment, which is widely used in the stamping processing of various metal materials. With the features of high efficiency, energy saving, high precision and safe operation, it has become an important equipment for many enterprises to improve production capacity and guarantee quality. This article will combine our practical experience to give you a detailed introduction to pneumatic press.

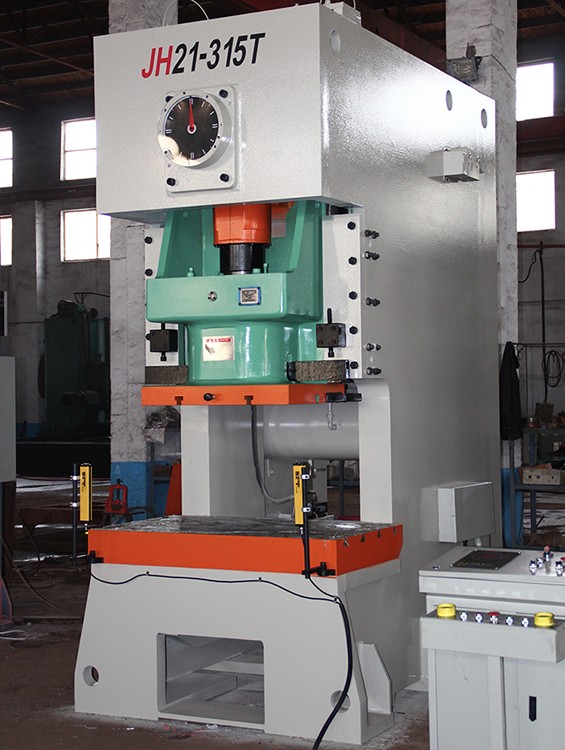

1.Working principle of pneumatic press

Pneumatic press is a kind of stamping equipment that uses high pressure gas generated by compressor to drive the work. Its working principle can be summarized in the following steps:

(1) The compressor generates high-pressure gas: first, the air is compressed into high-pressure gas by the compressor, and these gases are stored in the gas storage tank for subsequent use.

(2) Gas delivery and solenoid valve control: High-pressure gas is piped to the solenoid valve of the pneumatic press. The solenoid valve is the key component to control the flow of gas, and its opening and closing is controlled by a foot switch or a manual button to control the work and return of the cylinder.

(3) Cylinder-driven punching action: when the solenoid valve receives the control signal, the high-pressure gas enters the cylinder and pushes the piston to carry out linear motion. This movement is transformed into the up and down movement of the slider through the connecting rod mechanism, thus realizing the stamping processing of the stamped material.

2. How to use the pneumatic press?

(1) Installation and commissioning

Basic preparation:

- Ensure that the equipment is installed on a level ground, and the equipment leveling error is ≤0.1mm/m.

- Connection of gas piping, it is recommended that the use of internal diameter ≥ 8mm gas pipe, pressure adjusted to the rated value of the equipment.

Mold installation:

- Select matching upper and lower molds, fix them with T-bolts, and adjust the gap to 5%~10% of the material thickness.

(2) Operation Procedure

Start-up inspection:

- Make sure the emergency stop button is reset and the air pressure gauge shows stable.

- No-load test run 3~5 times, observe whether the slider movement is smooth.

Processing steps:

- Place the material on the table positioning slot, step on the foot switch to start stamping.

- Lubricate the guide rail every 2 hours for continuous operation (ISO VG32 lubricant is recommended).

(3) Safety and Maintenance

Protection:

- Photoelectric protection device must be installed, sensing distance ≤ 10cm (in accordance with OSHA standards).

- Operators need to wear goggles and noise-proof earplugs.

Common Troubleshooting:

- If there is air leakage, check whether the air hose connector is loose or the O-ring is worn.

- Slide jamming may be insufficient air pressure or guide rail oil shortage, need to stop the machine to troubleshoot.

3.Application of Pneumatic Punching Machine

Pneumatic punching machine is a kind of high efficiency, energy saving, high precision punching equipment, mainly used for stamping, cutting, molding and other processes, which can be widely used in automotive, motorcycle, electronics, aviation, hardware, electrical appliances, shoe making and other industries in the process. The following are a few application scenarios of pneumatic punching machines:

(1) Stamping and molding: stamping and molding of sheet metal parts, curved parts, precision hardware accessories, etc.; applied to automobile body covering and appliance shell making.

(2) Cutting processing: can efficiently complete the cutting of steel plate, stainless steel, aluminum alloy and other materials; cutting speed, high precision, suitable for mass production.

(3) Molding process: with stretching, bending, drawing, pleating and other process capabilities; widely used in shoe molds, electronic components shell processing.

(4) Hole punching process: it can realize high-speed processing of round hole, square hole and shaped hole; it is widely used in motorcycle parts, electronic components and hardware products.

Through the above introduction, we can have a deeper understanding of pneumatic punching machine. Pneumatic punching machine is becoming the preferred equipment of more and more enterprises with its high efficiency, energy saving, easy operation and safe and reliable features.

If you are interested in pneumatic punching machine, please contact us and we will recommend the right machine for you.
