What is the purpose of a punch press?

As a type of pressure machine, punching machines play a crucial role in modern manufacturing. Compared to traditional mechanical processing methods, the stamping process offers advantages such as material savings, efficient energy utilisation, ease of operation, and flexible application of moulds, enabling the production of products that are difficult to achieve through mechanical processing. As a result, its application scope is expanding rapidly.

1. Working Principle of a Punch Press

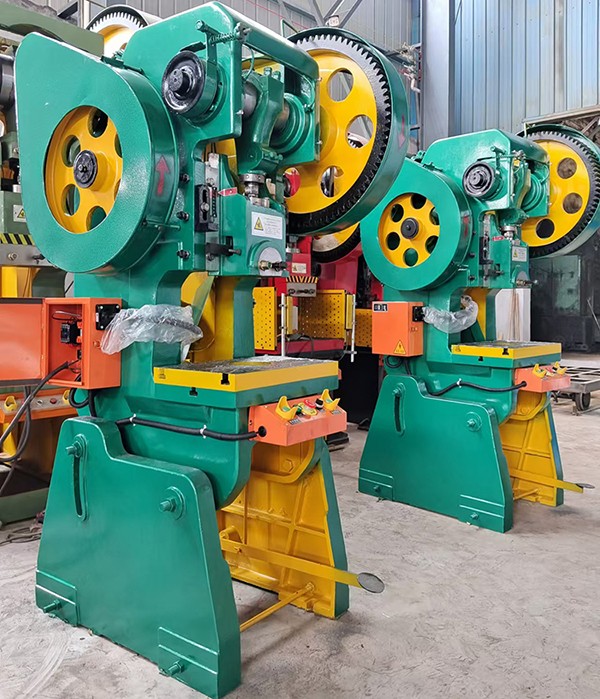

The working principle of a press machine primarily involves an electric motor driving a flywheel to store a certain amount of energy. When stamping is required, the clutch engages, and the flywheel drives the transmission gears, crankshaft (or eccentric gear), connecting rod, etc., to achieve linear motion of the slide block, with the motion from the main shaft to the connecting rod being circular. Between the connecting rod and the slide, there must be a transition point between circular and linear motion. In design, there are generally two types of mechanisms: spherical and pin-type (cylindrical). Through this mechanism, circular motion is converted into the linear motion of the slide. A punch press applies pressure to the material, causing it to undergo plastic deformation and achieve the desired shape and precision. Therefore, a set of dies (upper and lower dies) must be used to place the material between them. The machine applies pressure to deform the material. The reaction force caused by the force applied to the material during processing is absorbed by the punch press mechanism itself.

2. Main Applications of Punch Presses

(1) Cutting:

Punch presses can be used for cutting, particularly in the cutting of high-precision metal materials. Since the working principle of a punch press is similar to stamping, it can achieve very high shear forces in a small area, thereby achieving cutting through shearing.

(2) Forming:

Punch presses can perform forming while processing metal materials. Unlike cutting, forming involves applying bending, stretching, or other pressures to the metal material to achieve the desired shape and dimensions. By using different moulds, punch presses can achieve various shaping effects in terms of shape and size.

(3) Drilling:

Punch presses can be used for drilling, with an operating principle similar to that of a drill press. By setting the desired hole type and shape on the punch head, the workpiece is placed on the punch press for processing to achieve the desired drilling effect.

3. Application industries of punch presses:

(1) Automotive manufacturing industry: Punch presses play a pivotal role in the automotive manufacturing industry. Many components of car bodies, such as doors, bonnets, and boot lids, are formed through stamping using punch presses. Additionally, metal parts inside cars, such as seat frames and instrument panel brackets, also rely on the precision stamping of punch presses.
(2) Home appliance manufacturing industry: Metal casings and components in home appliances, such as refrigerator, washing machine, and air conditioner casings, as well as internal metal brackets and connectors, are typically produced in large quantities through stamping presses.
(3) Hardware manufacturing industry: Hardware products, such as locks, hinges, and hinges, require precise control of the shape and dimensions of metal sheets during production, and stamping presses have a natural advantage in this regard.
(4) Other manufacturing industries: In addition to the above industries, stamping presses are widely used in metal stamping processing in fields such as electronics, instruments and meters, and aerospace.

In simple terms, a punch press operates by using an electric motor to provide power, which is then converted and amplified through a series of mechanical transmission components. This ultimately drives the ram to strike metal sheets placed in the die at extremely high speeds, thereby achieving precise forming of the sheets. This operational mechanism gives punch presses the characteristics of high efficiency, high precision, and high stability in metal stamping processing, making them widely applied in the production of various metal products.
