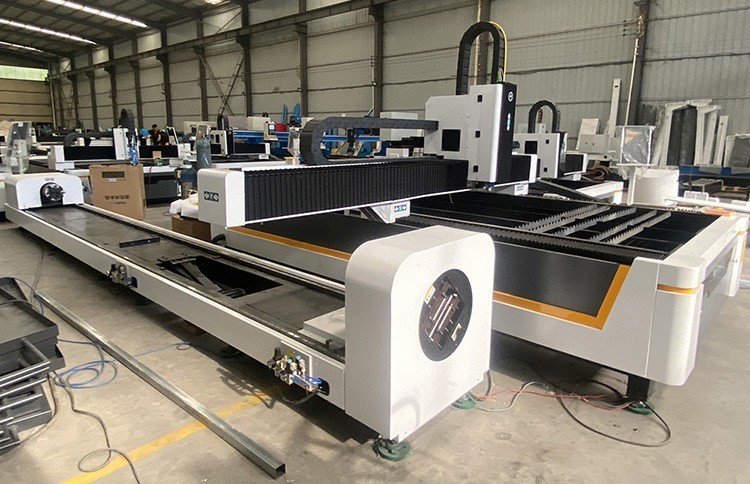

What is a plate and tube integrated laser cutting machine

In the field of modern manufacturing, laser cutting technology stands as a cornerstone of precision and efficiency. Among the diverse array of laser cutting machines, the plate and tube integrated laser cutting machine has emerged as a revolutionary innovation. It combines the capabilities of cutting both plates and tubes in a single machine, offering manufacturers a one - stop solution for a wide range of cutting needs. Let's delve into what exactly a plate and tube integrated laser cutting machine is.

1.Definition

A plate and tube integrated laser cutting machine is a sophisticated piece of equipment that utilizes a high - energy laser beam to cut through various materials, including metals like steel, aluminum, and stainless steel. It is designed to handle both flat plates and tubular materials, eliminating the need for separate machines for different cutting tasks.

2.Working Principle

The machine operates on the principle of laser cutting. A laser generator emits a high - intensity laser beam, which is then focused onto the material surface through a series of optical lenses. The focused laser beam heats the material to its melting or vaporization point, and a co - axial gas jet (usually nitrogen, oxygen, or compressed air) blows away the molten or vaporized material, creating a clean and precise cut.

For plate cutting, the laser beam moves along a pre - programmed path on the flat surface of the plate, cutting out the desired shapes. When it comes to tube cutting, the machine is equipped with a special tube - holding and rotating device. The tube is securely held in place and rotated as the laser beam cuts along its length, allowing for complex cuts such as holes, slots, and profiles.

3.Components

‌Laser Generator‌: It is the heart of the machine, responsible for producing the high - energy laser beam. There are different types of laser generators, such as fiber lasers, CO₂ lasers, and solid - state lasers, each with its own advantages in terms of power, cutting speed, and material compatibility.
‌Cutting Head‌: The cutting head focuses the laser beam onto the material and controls the flow of the co - axial gas. It is equipped with precision optics to ensure a high - quality cut.
‌CNC Control System‌: This is the brain of the machine. It receives the cutting instructions from a computer - aided design (CAD) or computer - aided manufacturing (CAM) software and controls the movement of the laser beam, the rotation of the tube (if applicable), and the operation of the gas supply.

‌Plate and Tube Handling Systems‌: For plate cutting, there are usually worktables or conveyor systems to feed and position the plates. For tube cutting, the tube - holding and rotating device is crucial for accurately positioning and rotating the tubes during the cutting process.

4.Advantages

‌High Efficiency‌: By integrating plate and tube cutting functions into one machine, manufacturers can save a significant amount of time and reduce the need for multiple machines and operators. This leads to faster production cycles and increased overall productivity.
‌Cost - Effectiveness‌: The elimination of separate machines for plate and tube cutting reduces capital investment, maintenance costs, and space requirements. Additionally, the machine's high - precision cutting reduces material waste, further lowering production costs.
‌Versatility‌: It can handle a wide range of materials, thicknesses, and shapes for both plates and tubes. Whether it's simple straight cuts or complex 3D profiles, the plate and tube integrated laser cutting machine can meet the diverse cutting needs of different industries.
‌High Precision‌: Laser cutting technology offers extremely high precision, with cut tolerances in the range of micrometers. This ensures that the cut parts meet the strict dimensional requirements of modern manufacturing, reducing the need for secondary finishing operations.
The plate and tube integrated laser cutting machine represents a significant leap forward in the field of laser cutting technology. Its ability to seamlessly switch between plate and tube cutting, combined with its high efficiency, cost - effectiveness, versatility, and precision, makes it an indispensable tool for manufacturers across various industries, from automotive and aerospace to construction and furniture making. As technology continues to advance, we can expect further improvements in the performance and capabilities of these machines, driving the manufacturing industry towards even greater levels of productivity and quality.
