How Hydraulic Punching Machine Work？

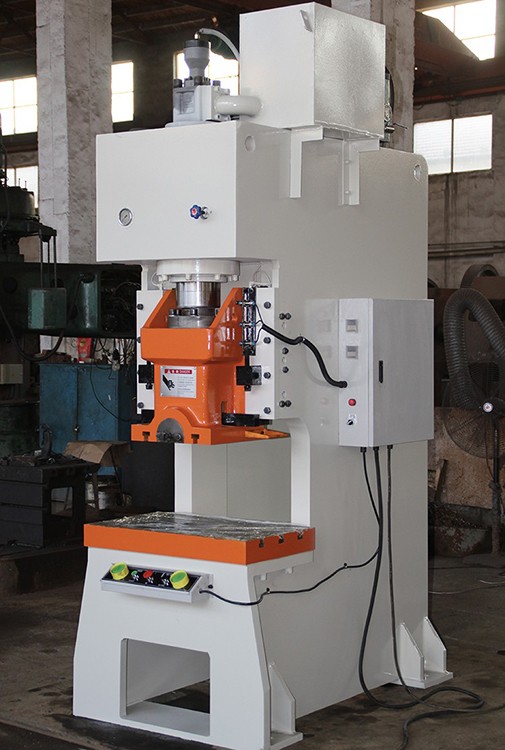

Hydraulic punching machine, also known as hydraulic press, is a kind of machinery based on Pascal's law, which utilizes liquid static pressure for processing. Its working medium is liquid, and it transfers energy through the hydraulic control system to realize various process requirements. Hydraulic press consists of three main parts: main machine, power system and hydraulic control system. It is widely used in pressing process and press molding process of metal, plastic, rubber, wood and powder products.

1.Components of hydraulic punching machine

(1) Hydraulic system

Hydraulic system is the power source of the hydraulic press, the hydraulic system is mainly composed of hydraulic pump, oil tank, hydraulic valves and so on. Hydraulic pump through the delivery of pressure oil, drive the hydraulic cylinder to work. The core role of the hydraulic system is to transmit the pressure, providing strong stamping pressure for the hydraulic press.

(2) Hydraulic cylinder

The hydraulic cylinder in the hydraulic press is the key component to realize the movement of the press. The pressure oil provided by the hydraulic pump enters the hydraulic cylinder through the hydraulic valve, so that the piston connecting rod of the hydraulic cylinder starts to work. The size and structural design of the hydraulic cylinder directly affects the bearing capacity and processing accuracy of the press.

(3) Operating system

The operating system of a hydraulic press usually consists of a control cabinet, push-button switches, pressure gauges and so on. Through the operation of the button switch, the operator can control the work of the hydraulic press.

(4) Worktable

The worktable is a platform for sheet metal processing, and the height and angle can be adjusted as needed to ensure that the distance between the sheet metal and the tool meets the processing requirements. Most of the hydraulic press workbench will be installed on the fixed fixture, molds and other to ensure that the workpiece in the stamping process is stable and does not move.

(5) Cutting tools and molds

The cutting tools and molds of a hydraulic press are the key tools to complete the operation of the press. The tool is responsible for directly impacting the sheet metal, while the mold is used to support the material and guide the tool for accurate stamping. The shapes, sizes and materials of the tools and dies are selected according to the different processing needs.

2. Operation process of hydraulic press

(1) Adjustment of the mold

According to the processing requirements, the operator needs to adjust the position and size of the mold. By loosening and tightening the screws or adjusting the handle, the position and pressure of the mold in contact with the workpiece will meet the requirements.

(2) Place the workpiece

The operator places the sheet metal on the table, fixes it as required, and ensures that its position is precisely aligned to avoid errors in the machining process.

(3) Start machining

After confirming the position and stability of the mold and workpiece, the operator can press the machining button to start the machining process. During the machining process, the operator needs to closely observe the workpiece on the table to ensure the accuracy and completeness of the machining.

(4) Completion of processing

After each stamping operation is completed, the operator can adjust the parameters as needed and perform multiple stampings until the processing requirements are met.

(5) Shutdown and maintenance

After processing is complete, the operator shuts off the hydraulic pump and carries out equipment cleaning and maintenance to ensure the long-term stable operation of the equipment.

In general, the working principle of the hydraulic press is to use the energy conversion and transfer of the hydraulic system to convert hydraulic energy into mechanical energy, so as to realize the stamping processing of metal materials. Through the synergistic effect of hydraulic system, table, punch and operating system, the hydraulic press can realize efficient and stable metal processing, which has a wide range of application prospects and development space.
