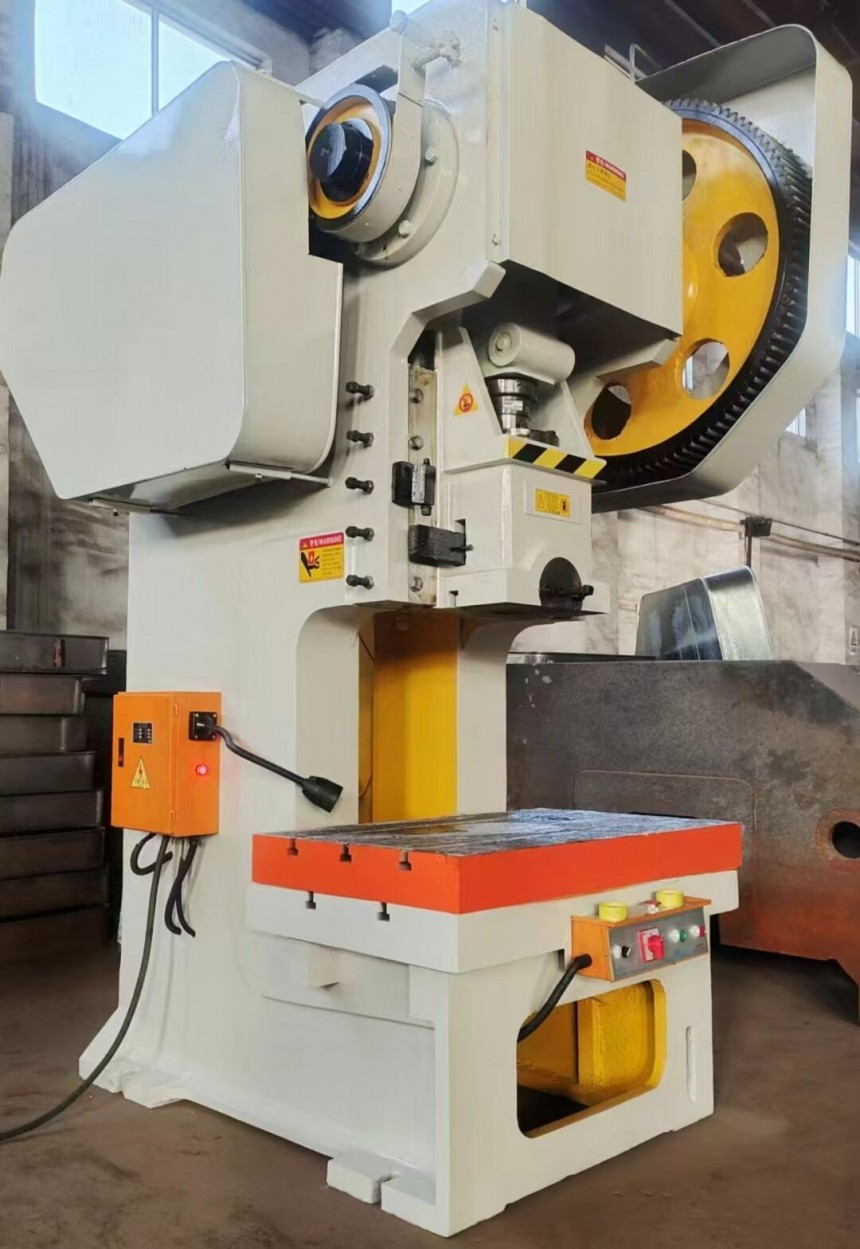

Mechanical Punch Press - Sheet Metal Equipment

We are a professional mechanical punching machine manufacturer with over 10 years of industry experience. Today, we would like to introduce to you the key influencing factors of machining accuracy of mechanical press machine:

As the basic equipment of modern manufacturing industry, the processing accuracy of mechanical punch press directly affects product quality and production efficiency. Understanding the key factors affecting the processing accuracy of punching machines not only helps operators to use the equipment reasonably, but also provides a clear direction for equipment maintenance and process improvement.

The mechanical punch press of the press equipment itself is the basic condition that determines the processing accuracy. Insufficient rigidity of the machine body will lead to elastic deformation in the stamping process, and this tiny deformation will be transmitted to the mould and the workpiece. Excessive guideway clearance will cause deviation of the slider's movement trajectory, while wear and tear of the gears, bearings and other parts of the transmission system will also affect the movement accuracy. The stability of oil pressure in hydraulic presses is equally critical, and pressure fluctuations can lead to uneven press force. These mechanical factors need to be kept in optimum condition through regular testing and maintenance.

The quality of the mould has the most direct impact on stamping accuracy. The mould material needs to have sufficient hardness and wear resistance, improper heat treatment process will lead to premature failure of the mould. The clearance between the convex die and concave die must be strictly controlled; too large a clearance will cause burrs, while too small a clearance will accelerate the wear of the die. Insufficient precision of the positioning device of the mould will cause workpiece positioning error, while the wear of the guiding structure will also affect the accuracy of the mould closure. Regular grinding and maintenance during the use of the mould is necessary to maintain the accuracy.

The characteristics of the material to be processed cannot be ignored. Uneven material thicknesses can lead to variations in punching force, causing small deformations in the equipment. Harder materials require higher punching forces, which can exacerbate elastic deformation of the equipment. Internal stresses in the material that are released after stamping may cause deformation of the workpiece. Adjusting process parameters for different material characteristics is an effective way to ensure accuracy.

Reasonable setting of process parameters is essential for accuracy control. Too high a blanking speed can increase equipment vibration, while too low a speed may affect the material separation effect. Stamping depth needs to be precisely controlled; too deep will damage the mould, too shallow will not complete the process. Inadequate lubrication conditions can increase friction, affecting material flow and mould life. These parameters need to be optimised and adjusted according to specific processing requirements.

Environmental factors can also have a subtle effect on machining accuracy. Temperature changes can cause thermal expansion and contraction of equipment components, and vibrations on the shop floor may be transmitted to the equipment foundation. Fluctuations in supply voltage can affect the stability of electrical control systems. Maintaining a stable working environment helps to maintain accuracy.

The professional quality of the operator is equally important. Correct mould loading and adjustment procedures can avoid human error, and standard operating habits can reduce accidental collisions. Operator's sensitivity to the status of the equipment helps to detect potential problems in time. Regular training can improve the operator's skill level.

In actual production, these factors are often interrelated. Ageing equipment may require more frequent mould maintenance, and changes in material properties require that process parameters be adjusted accordingly. The establishment of a systematic precision management system, including regular inspections, preventive maintenance and process monitoring, is the only way to ensure continuous and stable machining precision.

Through a comprehensive understanding of these influencing factors, production enterprises can take targeted measures to work on equipment selection, mould management, process optimization and personnel training, so as to effectively improve the quality level of stamped products. Precision control is a systematic project, which requires close co-operation and continuous improvement in all aspects.

If you are interested in mechanical punch press, please contact us.
