Punching Machine Selection Guide

We are a professional punching machine manufacturer with over 10 years of industry experience. Today, we would like to introduce you to the buying guide of punching machine:

Punching machine as an important equipment for metal processing, its performance directly affects the production efficiency and product quality. In the face of a wide variety of press equipment on the market, how to choose the model suitable for their needs has become the key to purchasing decisions. In this article, we will provide purchase suggestions from the use of demand, equipment parameters, functional configuration and other aspects.

1, Clear processing needs

Before selecting a press, you need to first clarify the main processing object. Including the type of material to be processed, thickness, hardness and other physical characteristics. Ordinary steel, stainless steel, aluminum and other different materials required by the stamping force there are significant differences. At the same time need to assess the scale of production, large quantities of continuous production and small quantities of many varieties of production equipment requirements are very different.

Processing requirements are equally important. Simple punching and the need for composite processes such as stretching and molding have different demands on equipment functions. The accuracy level of the product determines the requirements for equipment rigidity and control systems. In addition, possible future expansion of the processing requirements needs to be taken into account, so that an appropriate performance margin can be reserved for the equipment.

2, Determine the type of equipment

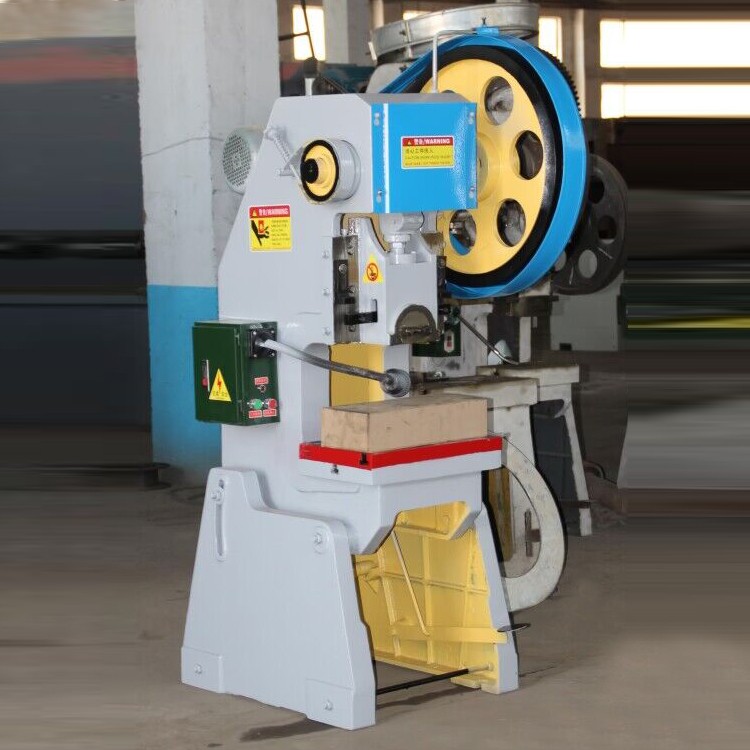

Mechanical punching machines are suitable for conventional sheet metal processing, featuring stable pressure and easy maintenance. Hydraulic punching machines are excellent in thick plate processing and deep drawing process, and the pressure can be precisely adjusted. Servo presses have the advantages of energy saving and precise control, especially suitable for high-precision processing occasions.

According to the requirements of production rhythm, you can choose ordinary punching machine or high-speed punching machine. For automated production, it is necessary to consider whether to equip automatic feeding device. Compact design or vertical structure can be considered for space-constrained locations.

3, Selection of key parameters

Nominal pressure is the first parameter to be considered, which needs to be determined according to the punching force required for the thickest material, generally retaining a margin of 20% -30%. Slider stroke length should be greater than the height of the workpiece, with special attention to the stretching process. The size of the table should be able to accommodate the largest workpieces and allow space for mold installation.

The number of strokes affects productivity, but needs to be balanced with accuracy requirements. Closed height and adjustment needs to match the mold height. Motor power should ensure stable operation under maximum load and avoid frequent overload.

4, Structural configuration assessment

The body structure needs to have enough rigidity, casting body vibration is small, steel plate welding body cost is low. The form of guideway affects the accuracy retention, rolling guideway is more suitable for high-speed precision machining. Clutch type is related to operation safety, pneumatic clutch is more reliable than mechanical type.

Balancing device can reduce vibration, especially important for high-speed punching machines. Buffer device can reduce noise and improve the working environment. The slider adjustment mechanism should be equipped with digital display for precise control.

5, Control system consideration

Traditional relay control is low-cost but less flexible, PLC control system is easy to expand functions and adjust parameters, CNC system is suitable for complex shapes machining, but the operation requirements are higher. Touch screen interface improves operation convenience and reduces human error.

Safety protection systems are essential, including photoelectric protection, emergency stop and overload protection. Troubleshooting function can quickly locate problems and reduce downtime. Data interface facilitates access to production management systems.

6, Accuracy standard verification

The clearance between the slider and the guideway directly affects the machining accuracy. Repeatability of the lower dead center is a key indicator, precision machining requirements are controlled within±0.01mm. The level and parallelism of the working table need to meet the standard. Precision retention after long-term operation is equally important.

7, Energy consumption and maintenance

Servo motor drive is significantly more energy efficient than conventional motors. Hydraulic systems need to pay attention to the efficiency of the cooling device. Pneumatic components to assess the compressed air consumption. The lubrication system should be equipped with automatic oil supply function to reduce manual maintenance.

The replacement cycle and cost of wearing parts need to be understood. The brand of key components such as guide rails and bearings affects the service life. Maintenance convenience is reflected in whether the layout of the equipment is easy to access.

8, Supplier Evaluation

Manufacturer's technical strength can be judged by R&D history, number of patents, etc. After-sales service network coverage affects the response speed. Spare parts supply cycle is related to equipment downtime. The quality of technical training determines the speed at which operators can get started.

9, Cost-effectiveness analysis

In addition to the acquisition cost, it is necessary to calculate the comprehensive cost of energy consumption, maintenance and labor during the use cycle. Equipment utilization rate directly affects the return on investment. The possibility of technological upgrading extends the service life of the equipment. Residual value rate affects the final depreciation cost.

Punching machine purchase needs to comprehensively consider the actual demand and equipment performance matching degree. Excessive configuration will cause a waste of resources, and insufficient performance will affect the production quality. It is recommended that the field inspection of the equipment operating conditions, test processing verification. Fully communicate with multiple suppliers to obtain the optimal solution. Reasonable purchase decision can bring long-term production benefits for the enterprise.
