We are a professional punching machine manufacturer with over 10 years of industry experience. Today, we would like to introduce to you the difference between a mechanical punching machine and a pneumatic punching machine:



As an important processing equipment in modern manufacturing industry, punching machine is mainly divided into two types: mechanical punching machine and pneumatic punching machine according to the different driving methods. There are significant differences between these two types of equipment in terms of working principle, structural characteristics, performance and applicable scenarios, etc. Understanding these differences will help users choose the right equipment according to actual production needs. Understanding these differences helps users to choose the right equipment according to the actual production needs.



1, Difference in working principle

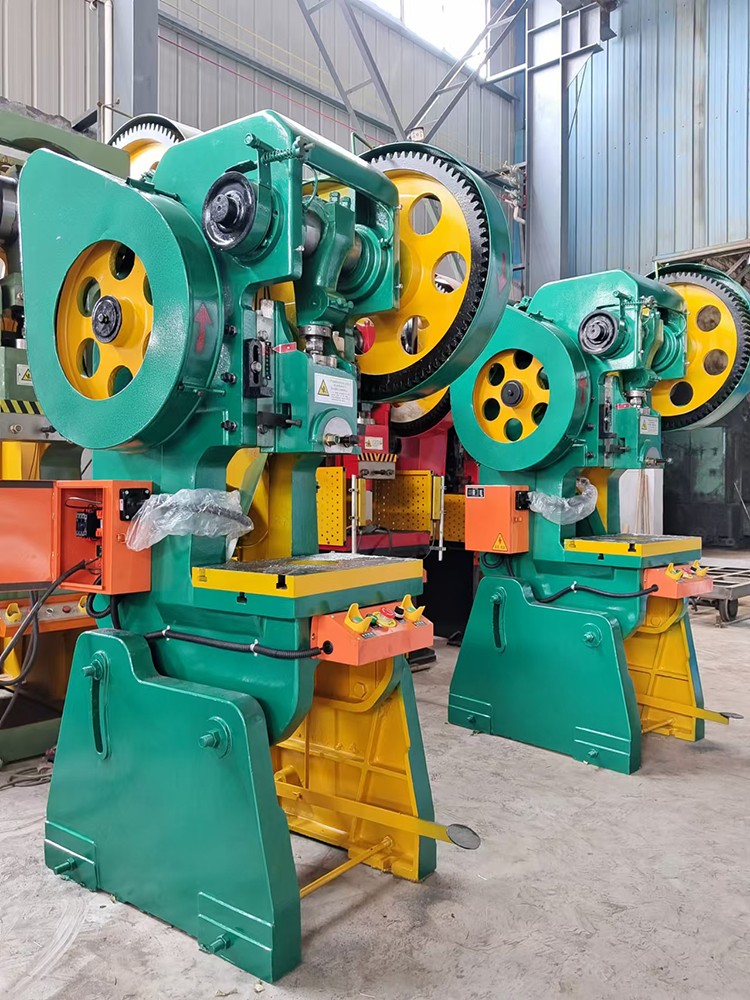

Mechanical punching machine adopts mechanical transmission, and its core component is crank linkage mechanism. The motor drives the flywheel to rotate through the pulley, and the kinetic energy stored in the flywheel is transferred to the crankshaft through the clutch, and the rotary motion of the crankshaft is converted into the up-and-down reciprocating motion of the slider through the connecting rod. This type of transmission has a clear trajectory, the slider stroke is fixed, and the stamping speed is determined by the motor speed.



Pneumatic punching machine use compressed air as the power source. Compressed air through the solenoid valve control into the cylinder, push the piston rod drive slider movement. Its working process does not require mechanical transmission components, the power comes directly from the air pressure. The size of the air pressure can be controlled through the regulating valve, thus changing the punching force. The movement speed and stroke of the slider can be controlled by air pressure adjustment and limit device.



2, Difference in structure composition



The structure of the mechanical punching machine is relatively complex, mainly containing the body, transmission system, clutch braking system and slide mechanism and other components. The body is usually made of cast iron or steel plate welding, with high rigidity. The transmission system includes the motor, flywheel, gears, crankshaft and connecting rods, which require regular lubrication and maintenance. The clutch brake system is used to control the starting and stopping of the press, which is the key to safe operation.



The structure of pneumatic punching machine is relatively simple, mainly composed of body, cylinder, pneumatic system and control system. Because there is no need for complex transmission mechanism, the whole machine structure is compact, the number of parts is small. Cylinder is the core component, its sealing performance directly affects the service life of the equipment. The air pressure system includes air compressor, air storage tank, filter and regulating valve, etc., which is needed to keep the compressed air clean and stable.



3, Comparison of performance characteristics



In terms of stamping capacity, mechanical presses usually have a larger tonnage range and are suitable for processing thicker metal sheets. Its stamping strength is stable, and it can maintain high processing accuracy. However, due to the large inertia, mechanical punching machine in high-speed operation will produce greater vibration, the rigidity requirements of the body is higher.



The tonnage of pneumatic punching machine is relatively small, more suitable for processing thin plate materials. Its biggest advantage lies in the speed and controllability, the slider movement speed can be quickly adjusted, and can stop at any position of the stroke. Because there is no mechanical inertia, the pneumatic punching machine has a faster response time and is suitable for precision machining that requires frequent starts and stops.



In terms of energy consumption performance, mechanical punching machines still need to consume electrical energy to maintain the flywheel when unloaded, while pneumatic punching machines only consume compressed air when working, which is relatively more energy efficient. However, the pneumatic system requires additional air pressure equipment, and the overall energy consumption needs to be evaluated comprehensively.



4, Maintenance differences



The maintenance of the mechanical punching machines focuses on the transmission system. It is necessary to regularly check the wear of gears and bearings and replace the lubricant. The friction plate of the clutch braking system needs to be adjusted or replaced regularly to ensure the braking performance. Due to the complex structure, the troubleshooting and maintenance of mechanical faults are relatively time-consuming.



The maintenance of pneumatic presses, on the other hand, is mainly focused on the air pressure system. It is necessary to discharge the water in the air storage tank regularly, replace the air filter, and check whether the air pipe connection is leaking. Cylinder seals are wearing parts and need to be replaced in a timely manner according to use. The overall maintenance workload is small, but the quality of compressed air has a greater impact on the life of the equipment.



5, Selection of applicable scenes



Mechanical punching machines are suitable for continuous production of large quantities and high precision. It performs well in automobile manufacturing, home appliance production and other occasions that require stable processing quality. Its high rigidity and stable punching strength can ensure the consistency of product size. For sheet metal processing with a thickness of more than 3mm, mechanical punching machines are a more reliable choice.



Pneumatic punching machine is more suitable for small batch, multi-species flexible production. In the electronic components, precision instruments and other processing speed has a higher demand for the field is more advantageous. Its rapid response characteristics are particularly suitable for the need for frequent replacement of mold occasions. For the processing of thin plates with a thickness of less than 2mm, pneumatic punching machine can provide better economic benefits.



6, Consideration of safety performance



Due to its large inertia, the mechanical punching machine needs a certain buffer time when it stops sharply. Modern mechanical punching machines are usually equipped with photoelectric protection devices and two-hand operation buttons to ensure safe operation. However, there is still a large safety hazard when running at high speed, which requires strict operation specification.



Pneumatic punching machine can be stopped instantly with relatively better safety performance. The punching force can be precisely controlled by air pressure adjustment to avoid the danger of overload. However, due to the compressibility of compressed air, there may be a risk of unstable pressure under heavy load conditions.



7, Cost-benefit analysis

From the point of view of initial investment, the acquisition cost of mechanical punching machine is usually high, especially for large tonnage equipment. However, the service life is long and the maintenance cost is relatively controllable. The acquisition cost of pneumatic punching machine is lower, but it needs to be matched with air pressure system, and the overall investment needs to be considered comprehensively.



From the point of view of the cost of use, the energy consumption of mechanical punching machine is relatively fixed, suitable for long-term continuous operation. The energy consumption of pneumatic punching machine is directly related to the frequency of use, and has more cost advantages in intermittent production. In terms of tooling costs, the tooling for both types of presses cannot be universal and needs to be specifically designed according to the type of equipment.



Mechanical and pneumatic presses have their own advantages and limitations. When choosing between them, you need to consider a variety of factors such as the material to be processed, the production batch size, and the precision requirements. Mechanical punching machine have an advantage in large tonnage, high-precision processing, while pneumatic punching machine perform better in high-speed, flexible production. With the development of technology, both types of presses are constantly improving, and more new equipment that combines the advantages of both may appear in the future. In practical application, reasonable choice of equipment type, give full play to its performance characteristics, in order to obtain the best production efficiency.
