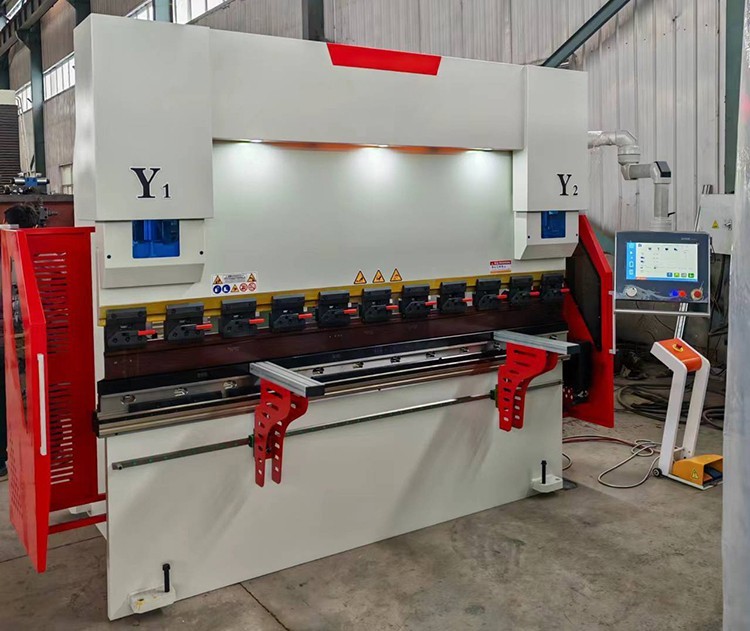

Automatic CNC bending machine

We are a professional manufacturer of automatic CNC bending machines with over 10 years of industry experience. Today, we would like to introduce to you:

Automatic CNC bending machine is an indispensable high-efficiency and high-precision equipment in the modern sheet metal processing industry. The following is an overview of automatic CNC bending machines:

1、 Definition and purpose

Automatic CNC bending machine, as the name suggests, is a mechanical equipment that precisely controls the bending process through a CNC system. It is mainly used for bending metal sheets of various thicknesses to meet the shape and size requirements of different products for sheet metal parts. Widely used in various fields such as automotive, aerospace, home appliances, construction, decoration, etc.

2、 Structural composition

It mainly consists of a frame, workbench, slider, rear material blocking device, mold, CNC system and other parts. Among them, the rack is the supporting structure of the automatic CNC bending machine, the worktable is used to place the metal sheet to be processed, and the slider is driven up and down by a driving device to complete the bending action. The rear blocking device is used to adjust the bending length of the board, and the mold is replaced according to the processing requirements. The numerical control system is the core of the entire equipment, responsible for receiving and parsing machining instructions, and accurately controlling the movement of each part.

3、 Working principle

The working principle of an automatic CNC bending machine is relatively complex, but in short, the CNC system controls the slider to bend the metal sheet placed on the workbench at a certain speed and pressure based on preset processing parameters through a driving device. During the bending process, the rear blocking device ensures that the bending length of the sheet meets the requirements, while the mold ensures the accuracy of the bending shape and angle.

4、 Technical features and advantages

High precision: Advanced CNC system and precise transmission mechanism are adopted to ensure machining accuracy of up to ± 0.01mm.
High efficiency: Automatically complete the processes of placing, positioning, bending, and unloading the sheet metal, greatly improving the production efficiency of the automatic CNC bending machine.
Multi functional: Different shapes of molds can be replaced according to processing needs, enabling processing of various bending shapes and angles.
Easy to operate: The friendly human-machine interface and rich processing parameter setting options make the operation more convenient and intuitive.

High stability: Using high-quality materials and advanced manufacturing processes to ensure the stability and reliability of the automatic CNC bending machine during long-term operation.

5、 Application Fields

Automatic CNC bending machines are widely used in various occasions that require metal sheet bending processing. Such as body sheet metal parts in automobile manufacturing, structural parts in aerospace industry, shells and brackets of household appliances, metal decorative panels in building decoration industry, etc.
In summary, automatic CNC bending machines are playing an increasingly important role in the sheet metal processing industry due to their high precision, high efficiency, multifunctionality, and ease of operation. With the continuous advancement of technology and the expansion of application fields, it will continue to contribute to the development of the manufacturing industry.
Obtain detailed machine parameters and quotation.
